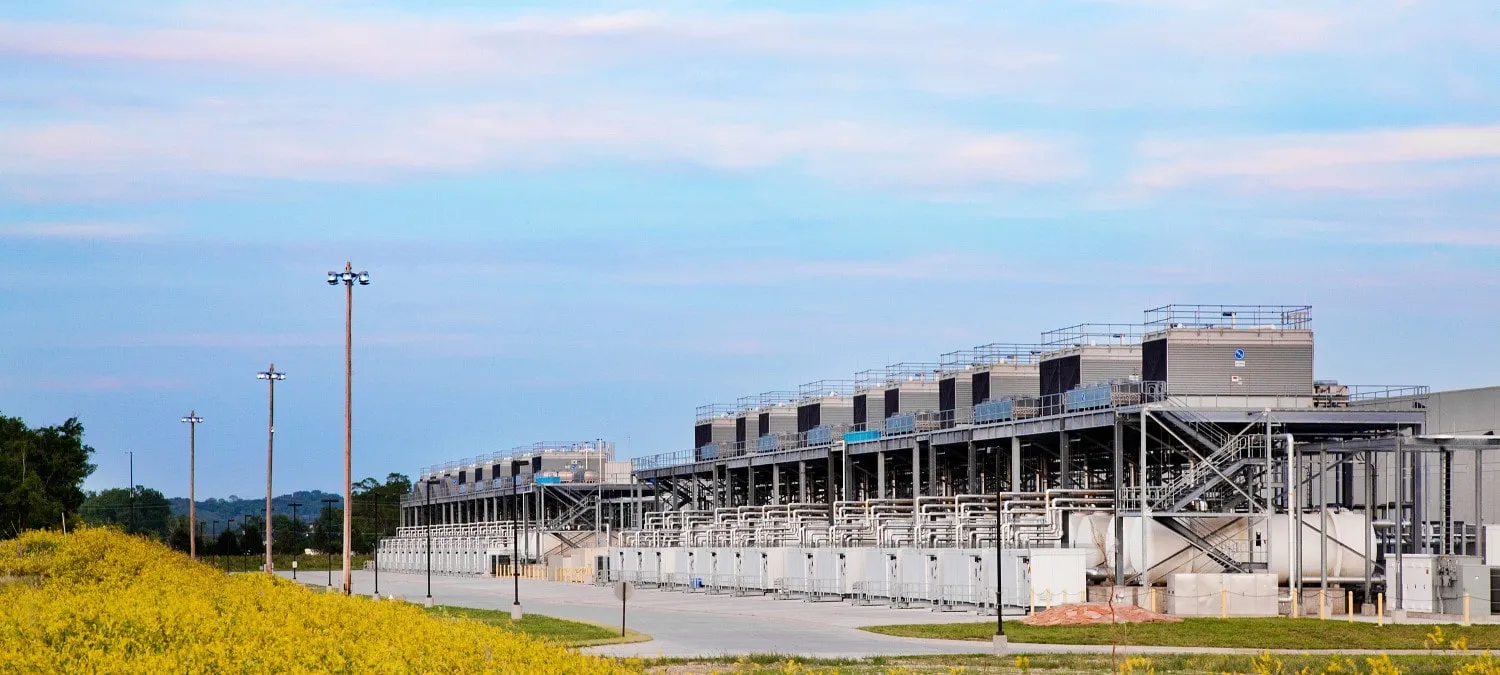

Data Center Cooling Airflow Calculator

Estimate sensible cooling capacity with the Data Center Cooling Airflow Calculator using CFM and temperature rise, with standard-air limits.

Result

Sensible cooling capacity (Btu/h)

—

Sensible cooling capacity (kW)

—

Sensible cooling capacity (refrigeration tons)

—

Formula

Calculation logic

Formula definitions and substituted values.

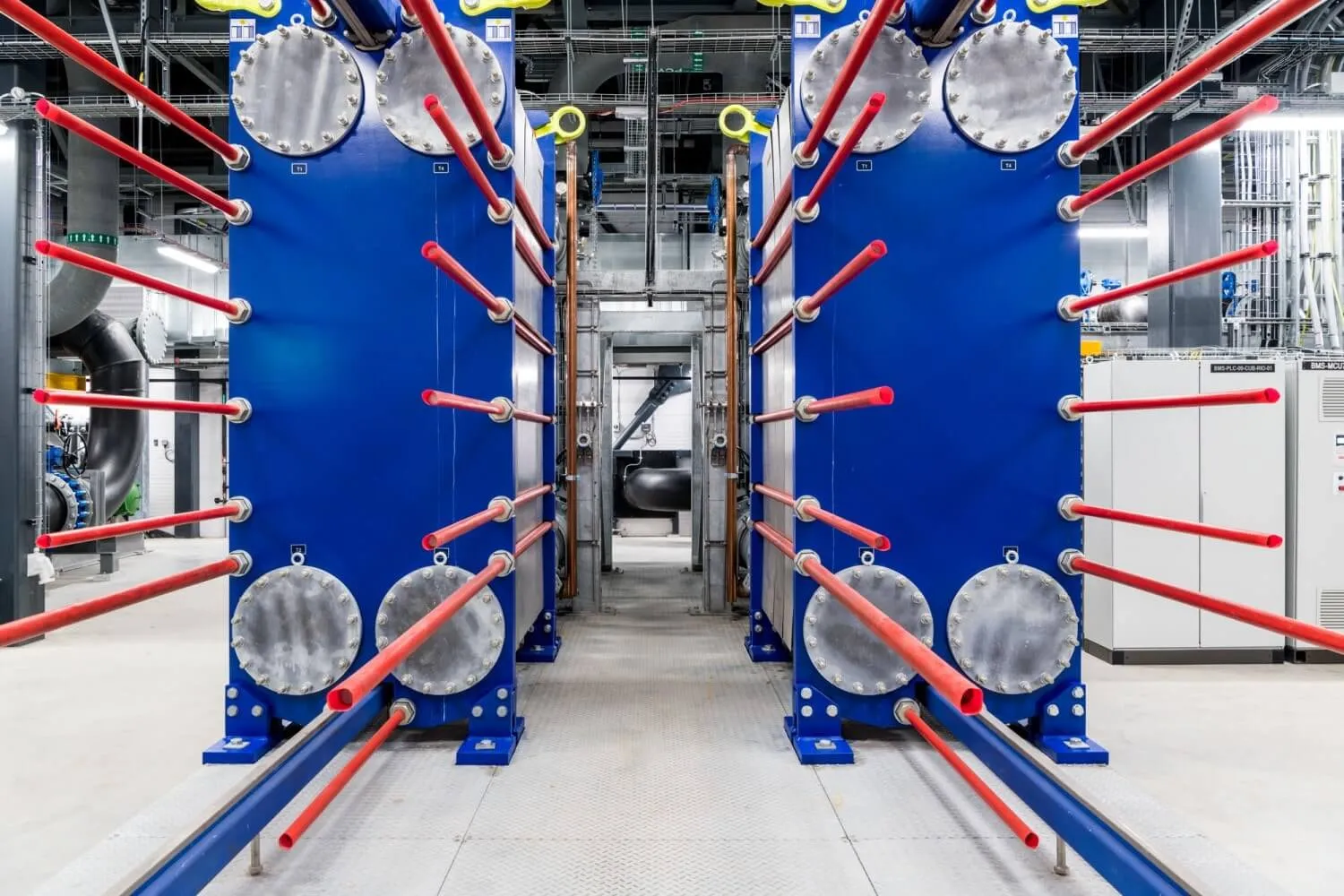

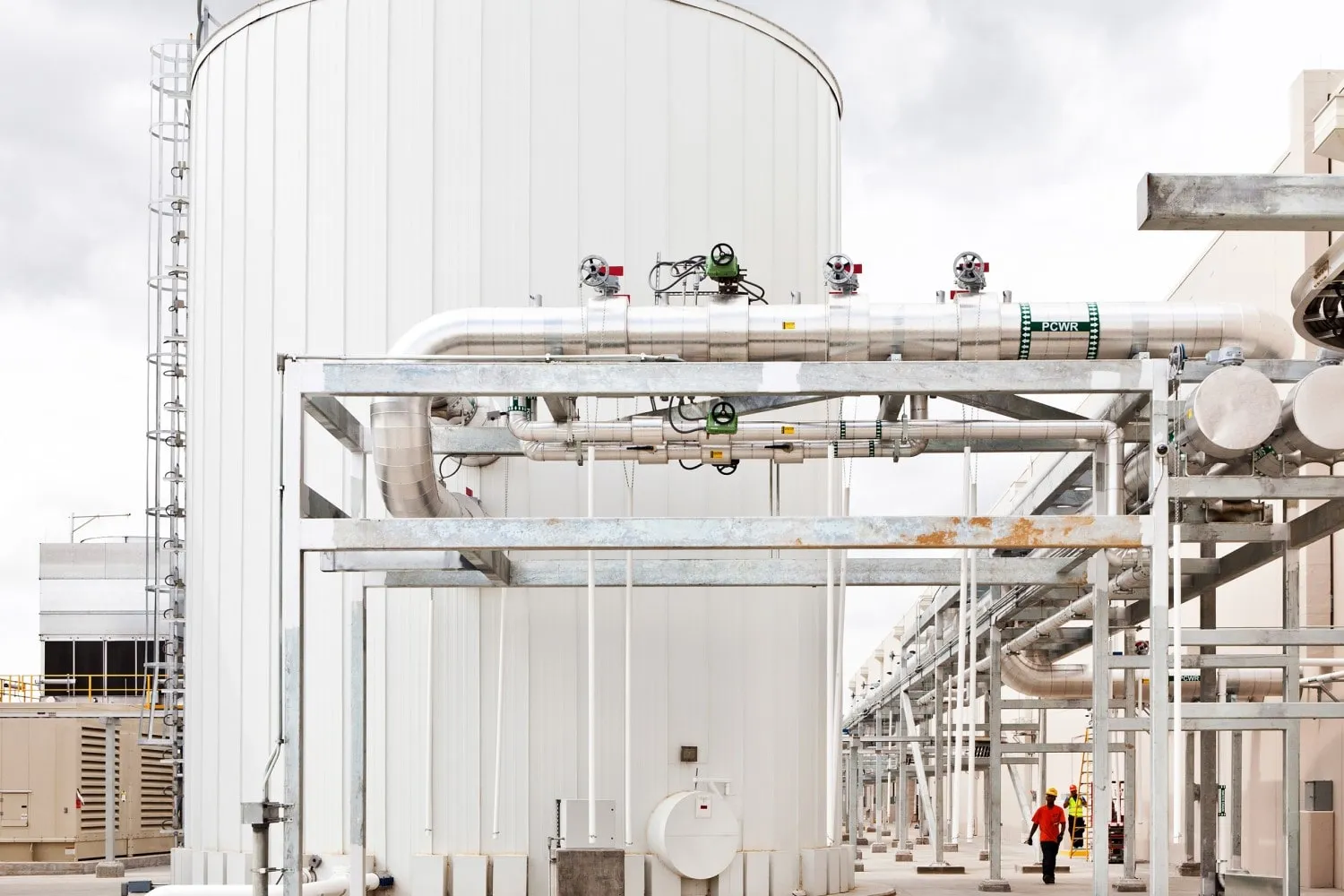

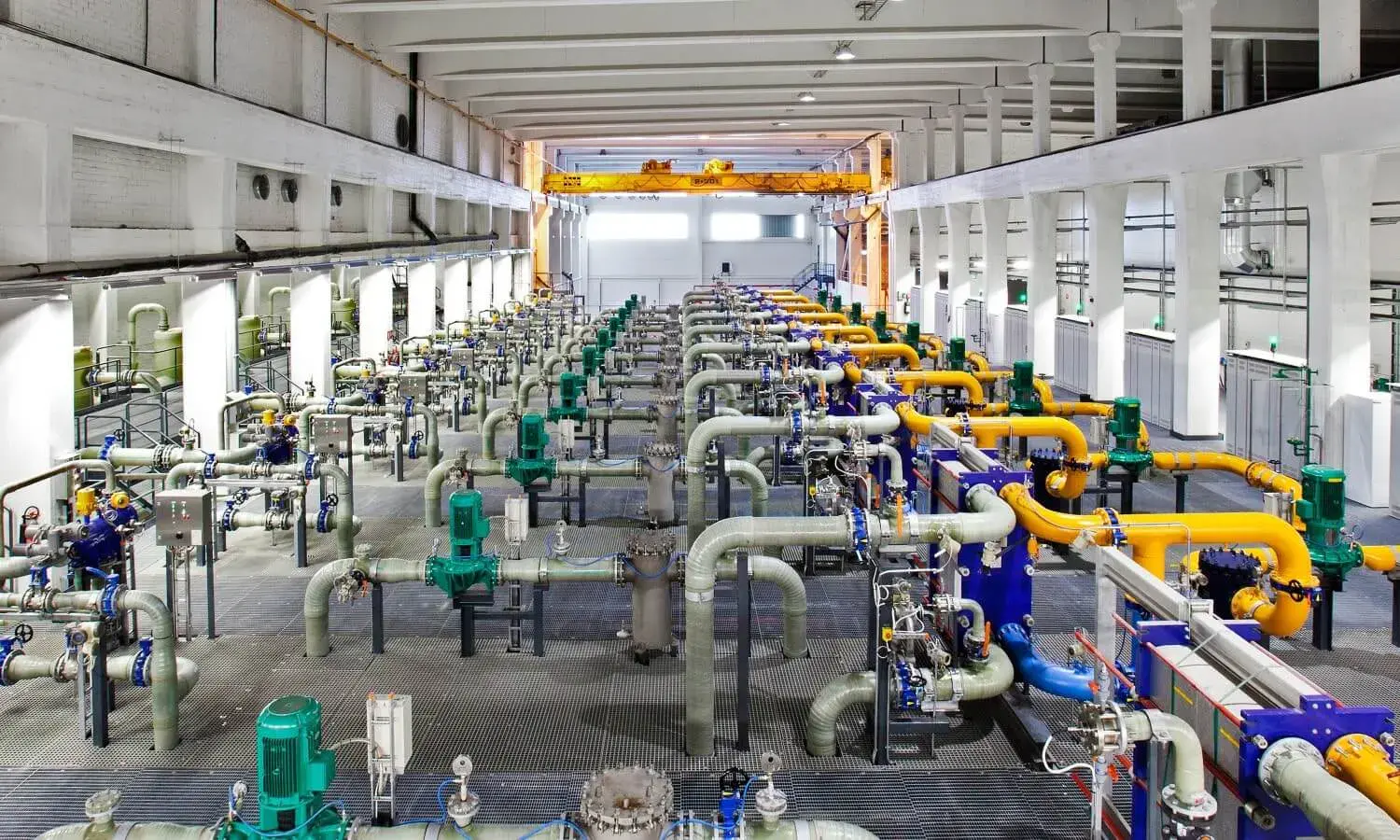

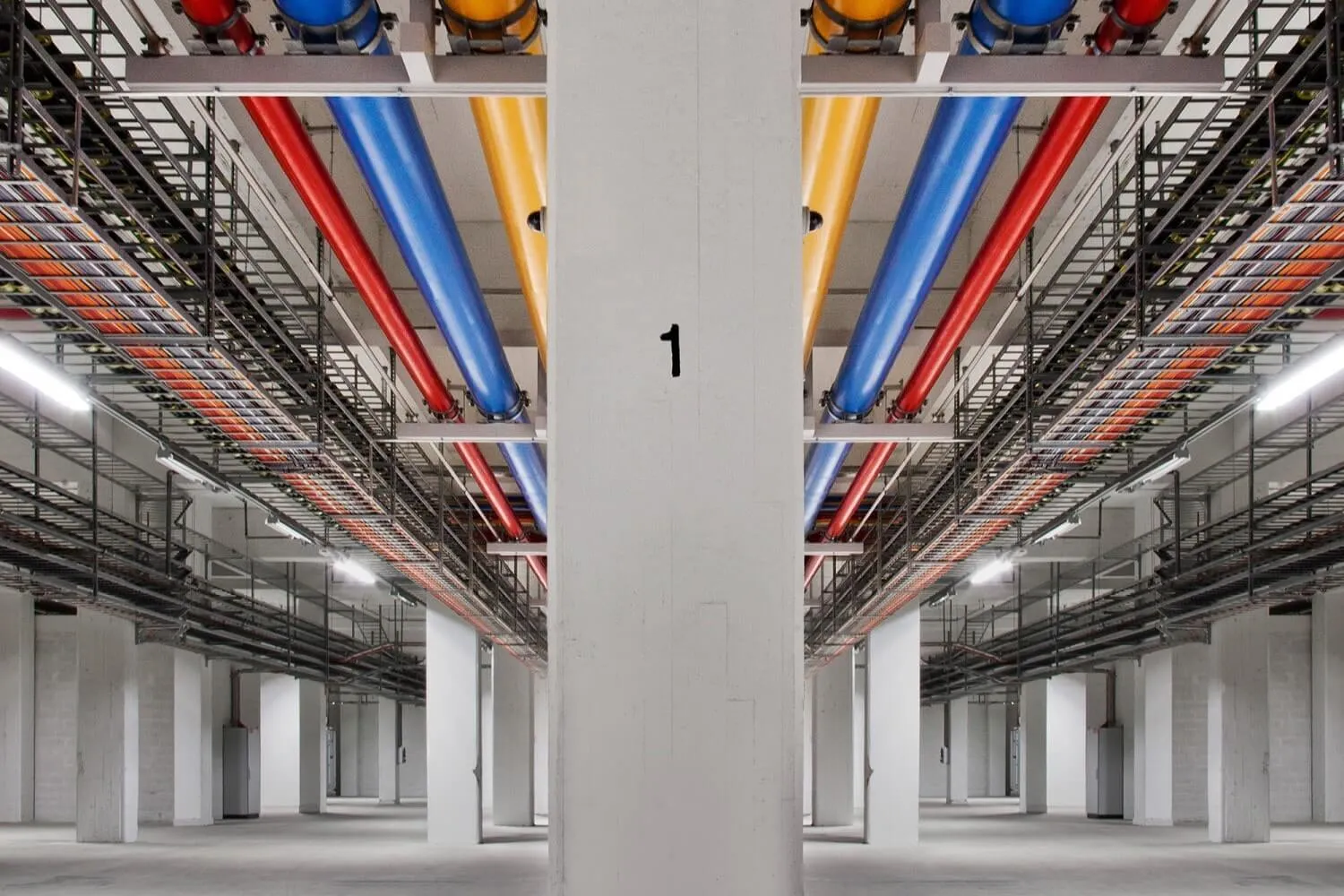

Cooling air absorbs heat as it passes through data-center equipment, leaving warmer than it entered. The sensible heat carried by that air depends on both airflow and its temperature rise: more air carries more heat at the same rise, while the same airflow carries more heat at a larger rise.

The result is sensible heat-transfer rate. Btu/h, thermal kW, and refrigeration tons express the same calculated rate in different units; they are not three separate capacities, and thermal kW is not cooling-system electrical demand.

Formula

For the standard-air approximation used here:

Q_s=1.08\times\mathrm{CFM}\times\Delta T_{°F}

The result is Btu/h. The calculator then divides by 3,412.142 Btu/h per kW and by 12,000 Btu/h per refrigeration ton. The 1.08 factor combines assumed air density, specific heat, and the minutes-to-hours conversion.

At a fixed temperature rise, doubling airflow doubles the calculated sensible capacity. At a fixed sensible load, doubling airflow halves the temperature rise required to carry that load; it does not create more IT heat.

Match airflow and temperature to the same boundary

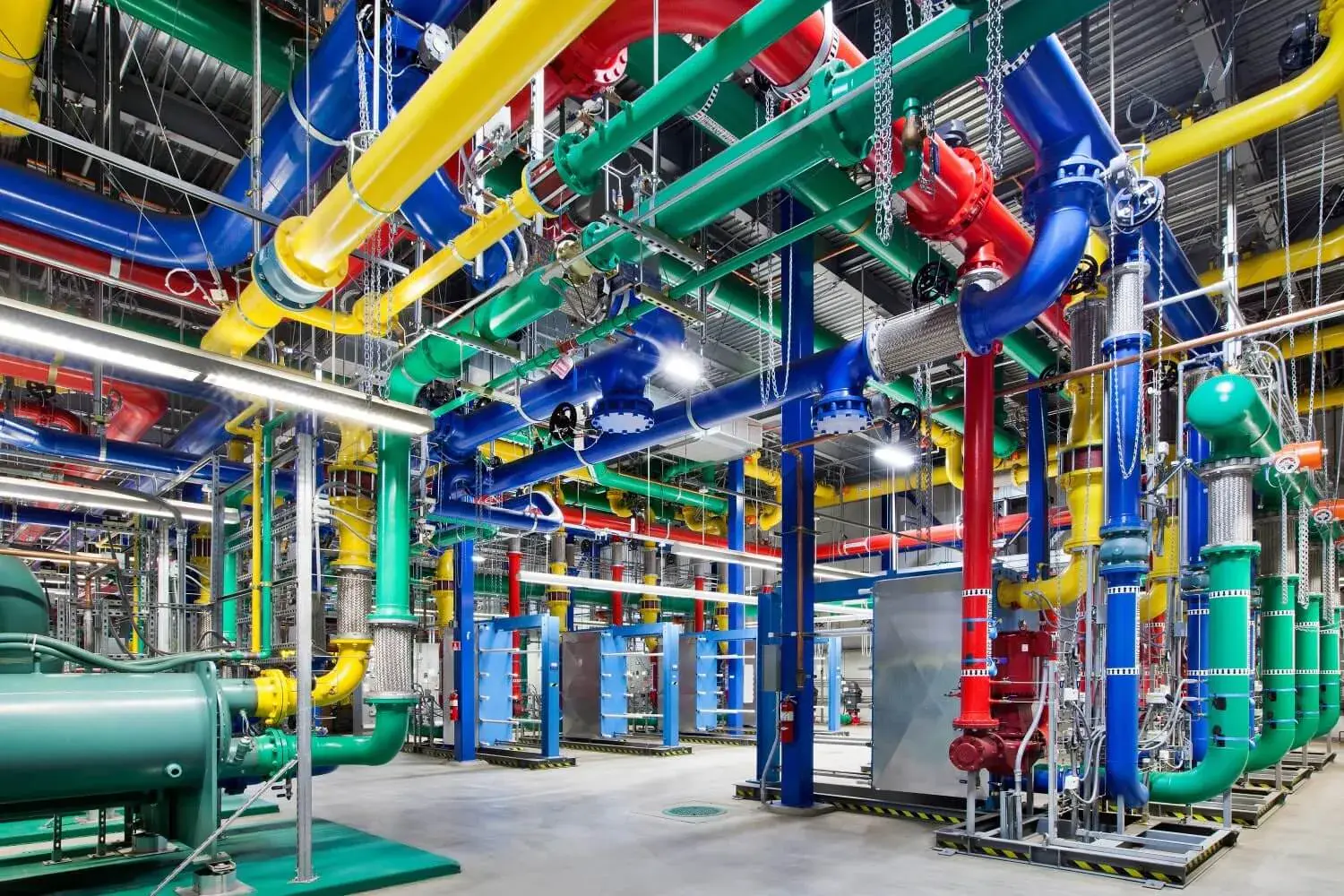

The entered temperature rise is return-air temperature minus supply-air temperature. It is a temperature interval, not either absolute temperature. If a temperature difference is measured in °C, multiply the interval by 1.8 to obtain °F; do not add 32.

Airflow and temperature rise must describe the same air stream and load condition. Cooling-unit airflow should be paired with representative supply and return temperatures for that unit, while a rack-level calculation needs airflow through that rack and its corresponding inlet-to-exhaust rise. Rated maximum airflow is not automatically operating airflow, and room supply airflow is not necessarily all airflow through IT equipment because bypass and recirculation can occur.

Comparing temperature-rise assumptions

These hypothetical cases hold airflow at 10,000 CFM and use the same 1.08 factor. They are planning comparisons, not equipment ratings.

Airflow (CFM)	Supply-to-return rise (°F)	Sensible capacity (Btu/h)	Thermal capacity (kW)	Refrigeration tons
10,000	10	108,000	31.65	9.00
10,000	15	162,000	47.48	13.50
10,000	20	216,000	63.30	18.00
10,000	30	324,000	94.96	27.00

At 10,000 CFM and a 15°F rise, the relationship gives 162,000 Btu/h, approximately 47.48 thermal kW or 13.50 refrigeration tons. Increasing the assumed rise from 15°F to 20°F increases the calculated heat transfer by one-third; it does not prove that a cooling unit can deliver that output or that equipment inlet temperatures are acceptable.

Limits and checks

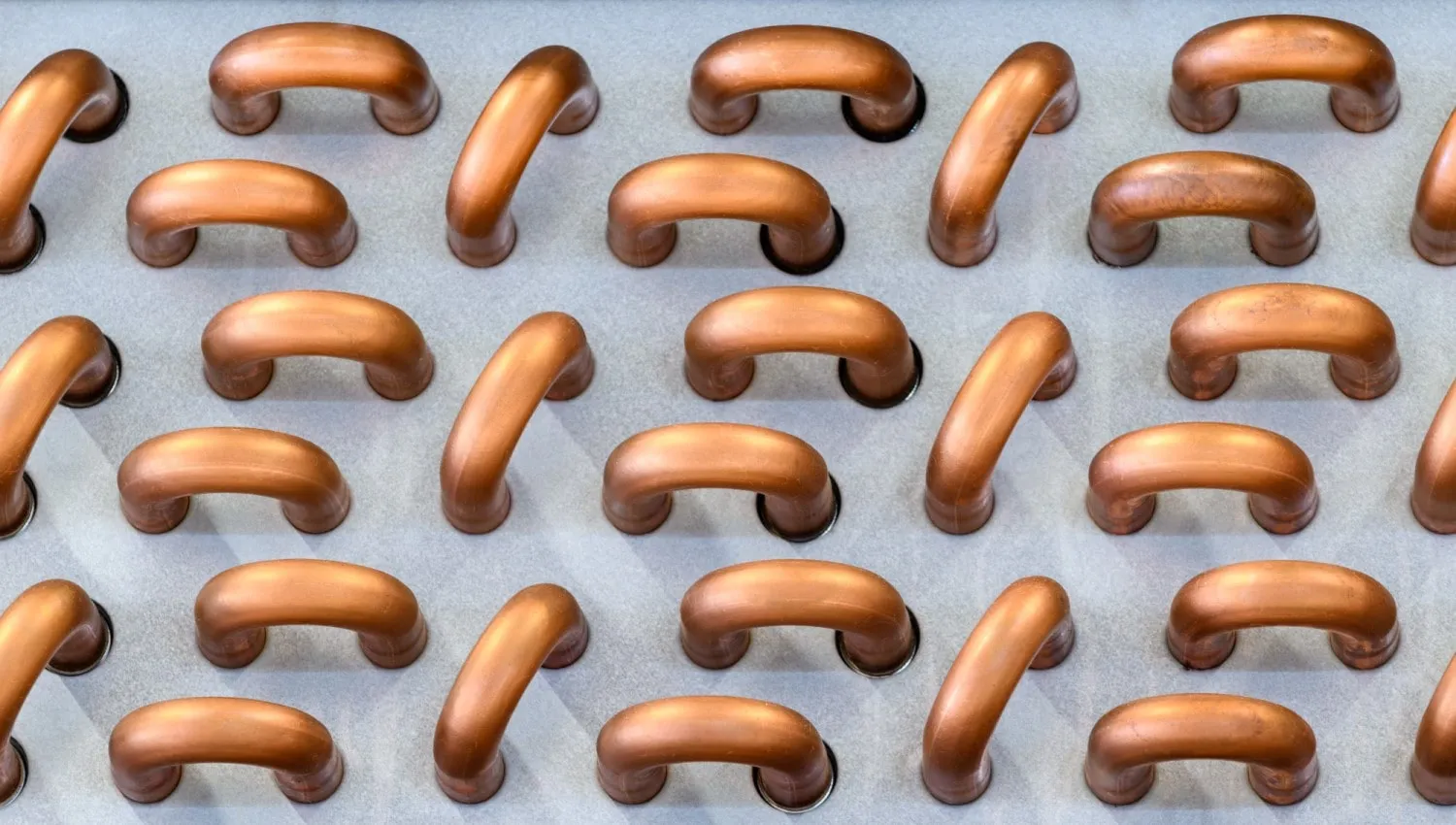

The 1.08 coefficient is an approximation for standard air. Altitude, density, humidity, air temperature, fan heat, duct leakage, airflow distribution, and nonstandard conditions can change the heat balance. The calculator does not model latent cooling, coil performance, controls, fan power, bypass, or recirculation.

Use the result to compare airflow-and-temperature-rise scenarios or screen them against a separately established sensible load. Before treating it as available cooling capacity, compare it with equipment sensible-performance data and representative airflow and temperature records for the same boundary.
